File Writer Service

1. Overview

The File writer service writes the MessagePart-Out into the content of a file.

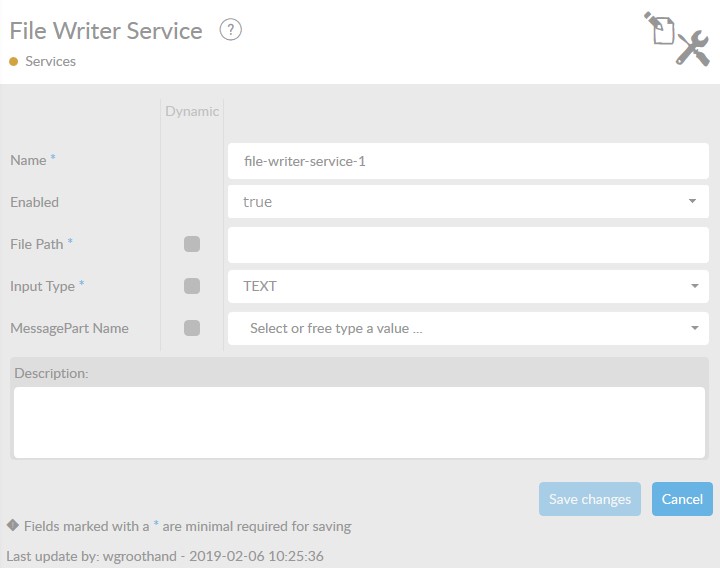

In the table below, you will find an explanation of these properties.

All attributes with a * are mandatory.

Attribute	Description
Name*	By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.
Enabled	Set this value to true, if you want this service to be enabled.
File Path*	Location of the destination file.
Input Type*	TEXT for String, XML for Document and BYTES for Bytes Message Part. The default is TEXT.
MessagePart-In	Name of the MessagePart in a ConnectMessage where the content of the file is being stored. This is the part which will be written to the File.
Description	Description of the specific service. This is for documentation purposes.

Attribute

Description

Name*

By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this service to be enabled.

File Path*

Location of the destination file.

Input Type*

TEXT for String, XML for Document and BYTES for Bytes Message Part. The default is TEXT.

MessagePart-In

Name of the MessagePart in a ConnectMessage where the content of the file is being stored. This is the part which will be written to the File.

Description

Description of the specific service. This is for documentation purposes.

Special ConnectPlaza Headers:

file_name : can specify a single filename or a comma separated list (when using multiple messageparts). This will override the output file name(s).
file_msgprt : can override and specify a messagepart or a comma separated list when using messagepart-in=ALL
file_path : can override and specify a output path to write the files. This override the File Path.
