ZIP Service

1. Overview

With this service you can create a ZIP file. This file will be sent via MessagePart Out to a producer, which handles the export of the ZIP File.

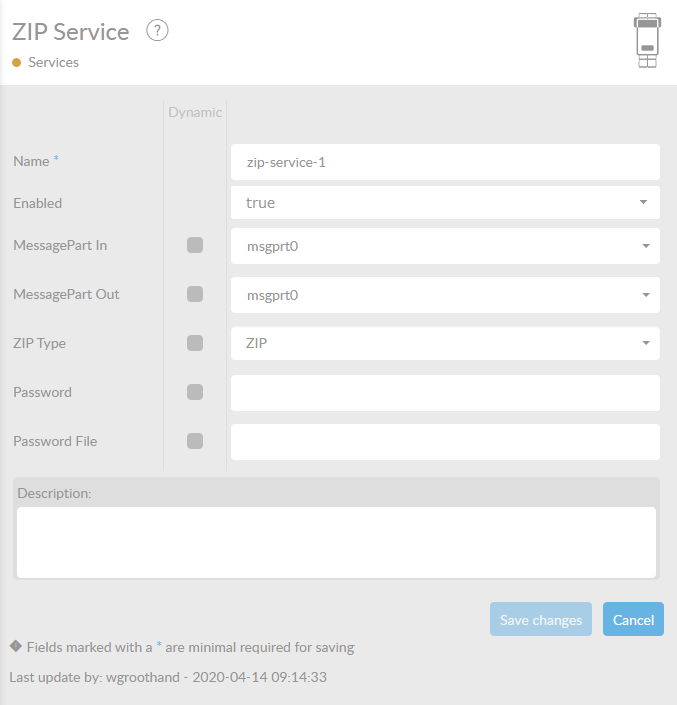

In the table below, you will find an explanation of these properties.

All attributes with a * are mandatory.

Attribute	Description
Name*	By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.
Enabled	Set this value to true, if you want this service to be enabled.
MessagePart-In	In this property you can define the name for the MessagePart in the Message, which will be used for the response. In this MessagePart, the value of the param-out parameter will be set before sending the message to the Services. The default value is msgprt0 .
MessagePart-Out	This is the name of the MessagePart from the ConnectMessage, which content is written to the file. If ALL-XML is entered here, the entire ConnectMessage is written to the file. By default, the name “msgprt0” will be used.
Description	Description of the specific service. This is for documentation purposes.

Attribute

Description

Name*

By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this service to be enabled.

MessagePart-In

In this property you can define the name for the MessagePart in the Message, which will be used for the response. In this MessagePart, the value of the param-out parameter will be set before sending the message to the Services. The default value is msgprt0 .

MessagePart-Out

This is the name of the MessagePart from the ConnectMessage, which content is written to the file. If ALL-XML is entered here, the entire ConnectMessage is written to the file. By default, the name “msgprt0” will be used.

Description

Description of the specific service. This is for documentation purposes.
