WSDL validator

1. Overview

The WSDL validator validates an incoming message based on an WSDL.

In the table below, you will find an explaniation of these properties.

All attributes with a '*' are mandatory.

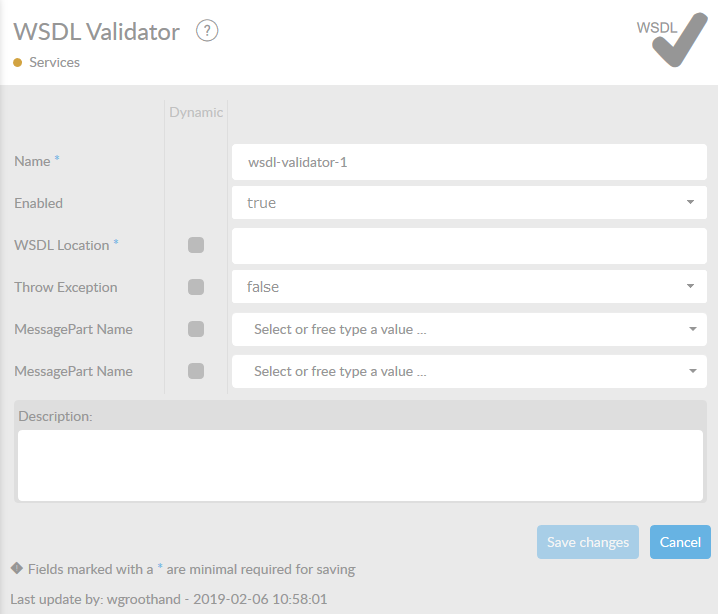

Attribute	Description
Name*	By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.
Enabled	Set this value to true, if you want this service to be enabled.
WSDL Location*	WSDL file to validate the incoming messagepart against.
Throw Exception	When set to true: when validation fails, send message to error-flow. When set to false: send to next step. The default is true.
MessagePart-In	Name of the MessagePart in a ConnectMessage where the content of the file is being stored.
MessagePart-Out	Name of the MessagePart in a ConnectMessage where the content of the file is being stored.
Description	Description of the specific service. This is for documentation purposes.

Attribute

Description

Name*

By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this service to be enabled.

WSDL Location*

WSDL file to validate the incoming messagepart against.

Throw Exception

When set to true: when validation fails, send message to error-flow. When set to false: send to next step. The default is true.

MessagePart-In

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

MessagePart-Out

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

Description

Description of the specific service. This is for documentation purposes.

For more information, see the article on Validation
