JSON Validator

1. Overview

The JSON Validator validates an incoming message based on a JSON schema.


In the table below, you will find an explaniation of these properties.

All attributes with a '*' are mandatory.

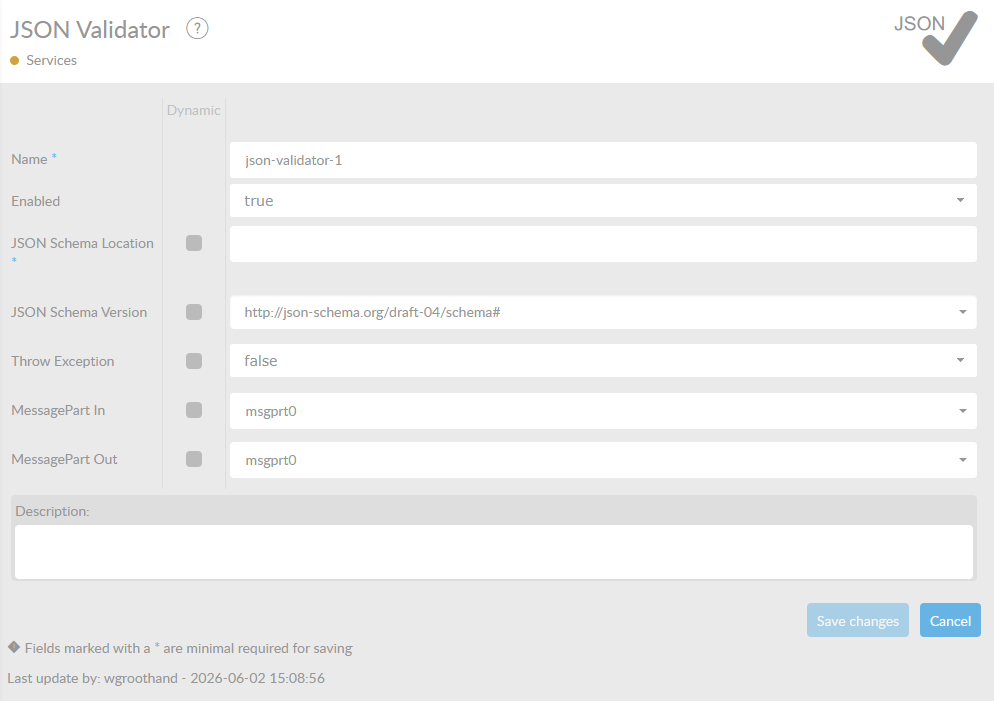

Attribute Description

Name*

By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this service to be enabled.

JSON Schema Location*

JSON Schema file to validate the incoming messagepart against.

JSON Schema Version

JSON Schema Versions. Support from draft-04 up to 2020-12.
Possible entries are:
http://json-schema.org/draft-04/schema#
http://json-schema.org/draft-06/schema#
http://json-schema.org/draft-07/schema#
https://json-schema.org/draft/2019-09/schema
https://json-schema.org/draft/2020-12/schema

Throw Exception

When set to true: when validation fails, send message to error-flow. When set to false: send to next step. The default is true.

MessagePart-In

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

MessagePart-Out

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

Description

Description of the specific service. This is for documentation purposes.

A word about validation, check the next page: Validation
