XSLT transformer

1. Overview

The XSLT transformer is a service which can transform XML input content through an XSLT definition. The result of this Service is a transformed XML document on the configured MessagePart. The format of the MessagePart-In has to be string or document.

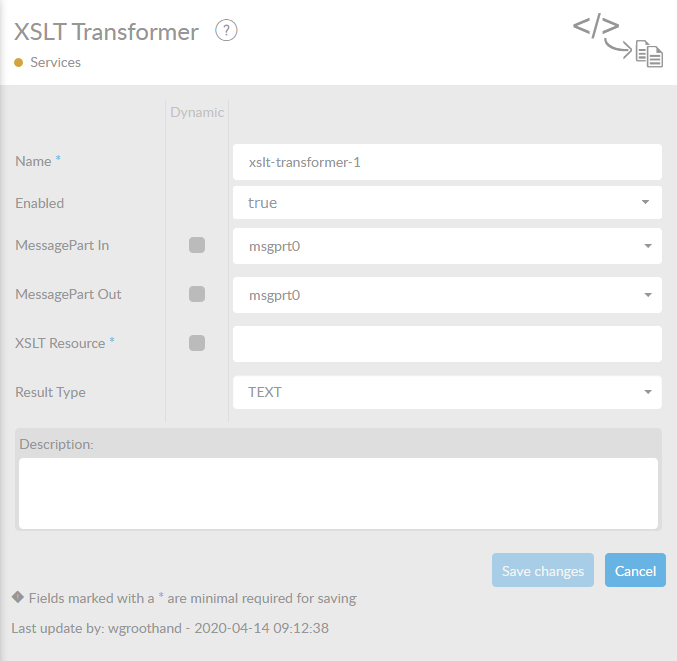

In the table below, you will find an explanation of these properties.

All attributes with a * are mandatory.

Attribute	Description
Name*	By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.
Enabled	Set this value to true, if you want this service to be enabled.
Messagepart-In	Name of the MessagePart in a ConnectMessage where the content of the file is being stored.
Messagepart-Out	Name of the MessagePart in a ConnectMessage where the content of the file is being stored.
XSLT Resource*	Here, you can specify the path to the XSLT Resource. You can do that easily by grabbing the XSLT Resource from the Interface Overview and drag it into this box.
Result Type	XSLT file local resources. Just drag and drop it from the resources.

Attribute

Description

Name*

By default, we fill this out with the technical tag, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this service to be enabled.

Messagepart-In

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

Messagepart-Out

Name of the MessagePart in a ConnectMessage where the content of the file is being stored.

XSLT Resource*

Here, you can specify the path to the XSLT Resource. You can do that easily by grabbing the XSLT Resource from the Interface Overview and drag it into this box.

Result Type

XSLT file local resources. Just drag and drop it from the resources.
